TDSO1160-KL - Vishay

Description: DISPLAY 7-SEG 0.28" SGL ORG-RED

Download TDSO1160-KL Model

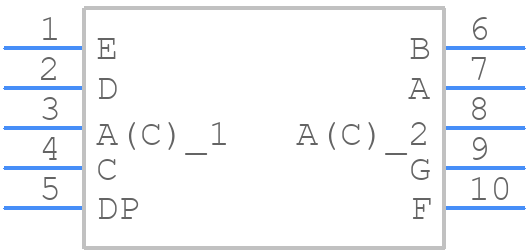

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

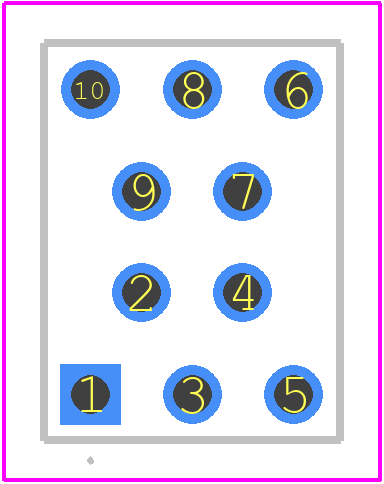

TDSO1160-KL - Vishay PCB footprint - Other - Other - TDSO1160-KL-3
click to zoom
3D Models
TDSO1160-KL - Vishay  - 3D model - Other - TDSO1160-KL-3
click to zoom

TDSO1160-KL Details

  • Manufacturer Part Number:

    TDSO1160-KL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Color:

    ORANGE RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.017 A

  • Forward Voltage-Max:

    3 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    630 nm

  • Terminal Finish:

    Silver (Ag)

TDSO1160-KL Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad, with multiple vias to the bottom layer to dissipate heat efficiently. Additionally, keeping the component away from other heat sources and using a thermal interface material can help.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 220°C. Apply a small amount of solder paste to the pads, and use a reflow oven or a hot air gun to solder the component. Avoid overheating or applying excessive force, which can damage the component.
  • The maximum allowed voltage on the sense pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the voltage below 5V to ensure reliable operation and prevent damage to the component.
  • The TDSO1160-KL is designed for low-frequency applications, and its performance may degrade at high frequencies. If you need to use it in a high-frequency application, you should carefully evaluate the component's performance and consider using a different component specifically designed for high-frequency applications.
  • During assembly, apply a small amount of thermal interface material (TIM) to the thermal pad, and ensure the component is properly seated on the PCB. During rework, use a thermal pad removal tool to avoid damaging the component or the PCB. Apply a new TIM and reassemble the component carefully.
