TDSR0750 - Vishay

Description: Display Segmented 1DIGIT 8LED Hi-Int Red

Download TDSR0750 Model

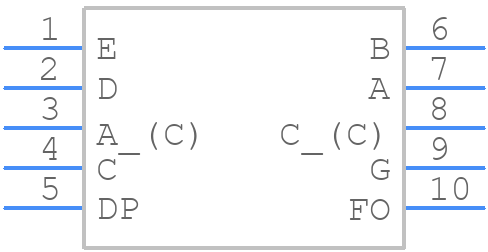

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TDSR0750 - Vishay PCB footprint - Other - Other - TDSR0750-1
click to zoom
3D Models
TDSR0750 - Vishay  - 3D model - Other - TDSR0750-1
click to zoom

TDSR0750 Details

  • Manufacturer Part Number:

    TDSR0750

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Color:

    HIGH INTENSITY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.01 A

  • Forward Voltage-Max:

    2.4 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    650 nm

  • Terminal Finish:

    SILVER
