TDSR1360 - Vishay

Description: Display Segmented 1DIGIT 8LED Hi-Int Red

Download TDSR1360 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

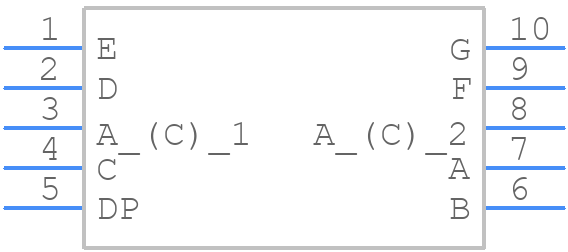

TDSR1360 - Vishay - PCB symbol
click to zoom
PCB Footprints

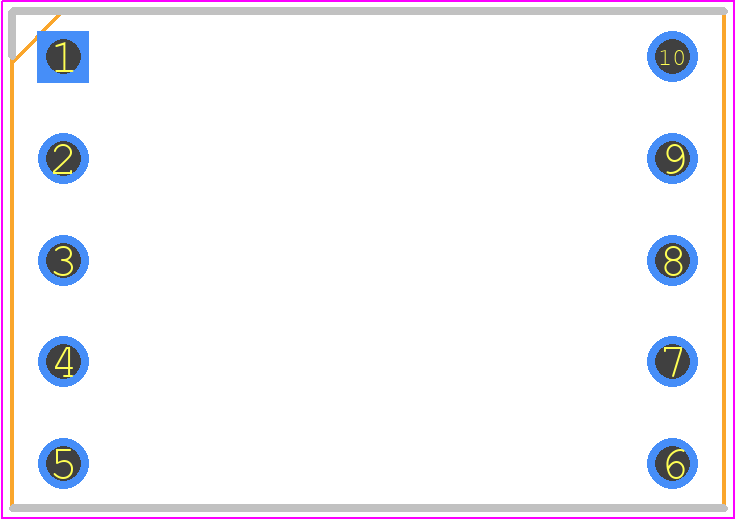

TDSR1360 - Vishay PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-10
click to zoom
3D Models
TDSR1360 - Vishay - 3D model - Dual-In-Line Sockets - DIP-10
click to zoom

TDSR1360 Details

  • Manufacturer Part Number:

    TDSR1360

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Color:

    HIGH INTENSITY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    13 mm

  • Forward Current-Max:

    0.01 A

  • Forward Voltage-Max:

    2.4 V

  • JESD-609 Code:

    e4

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    650 nm

  • Terminal Finish:

    SILVER

TDSR1360 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, thermal vias can be used to further improve heat dissipation.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider derating the power dissipation at higher temperatures to prevent thermal runaway.
  • A reflow soldering profile with a peak temperature of 260°C and a dwell time of 20-30 seconds is recommended. The device should be soldered using a no-clean or water-soluble flux.
  • Handle the device in an ESD-protected environment, and use ESD-protective packaging and handling materials. Grounding straps or wrist straps should be worn when handling the device.
  • Store the device in its original packaging or in a dry, ESD-protected environment. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDSR1360 Overview

Use the download button to access the TDSR1360 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDSR1, or try a keyword search, such as LED Displays
