- Part Number TEA2025B
- Manufacturer STMicroelectronics
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - PowerDIP16
- Released Date Jan 12, 2017
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TEA2025B Details
-
Manufacturer Part Number:
TEA2025B
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
DIP-16
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
TEA2025B Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the TEA2025B is 9V to 18V, with a typical voltage of 12V.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. Also, ensure the input signal is within the recommended range of 100mV to 1V.
-
The TEA2025B can handle a maximum power of 20W, but it's recommended to operate it within 10W to 15W for optimal performance and reliability.
-
To reduce noise and hum, use a well-regulated power supply, decouple the VCC pin with a 10uF capacitor, and use a noise filter capacitor (e.g., 100nF) between the input and ground. Also, ensure good grounding and shielding of the circuit.
-
Yes, the TEA2025B can be used as a headphone amplifier, but it's essential to ensure the output power is limited to avoid damaging the headphones. A maximum output power of 100mW per channel is recommended.
Trust Checks
Community Provided
System Verified
Community Approved
TEA2025B Overview

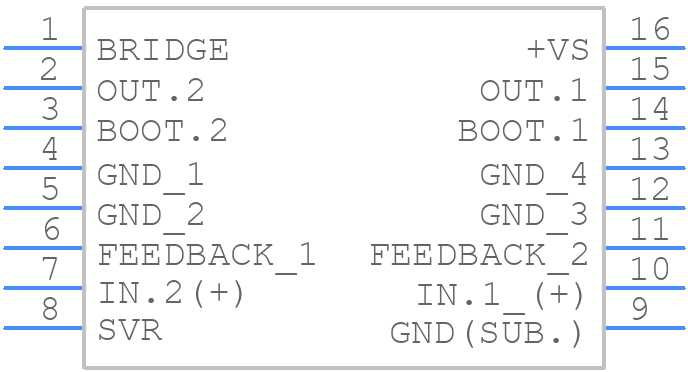

Use the download button to access the TEA2025B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TEA20,
or try a keyword search, such as Audio/Video Amplifiers
