TEA2025D013TR - STMicroelectronics

Description: Audio Amplifiers Stereo Audio Amp

Download TEA2025D013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

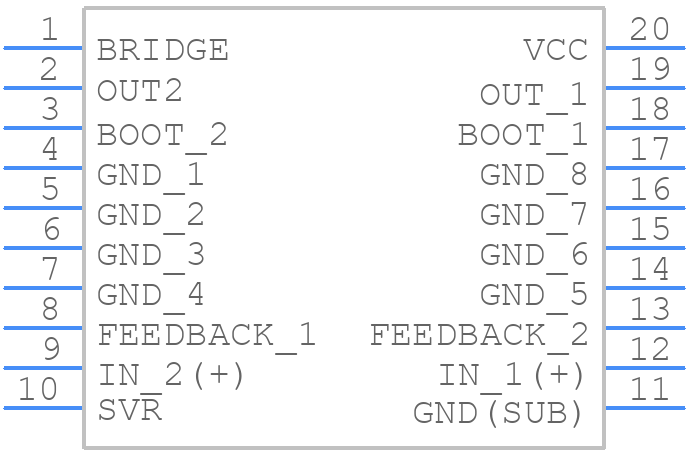

TEA2025D013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TEA2025D013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TEA2025D013TR
click to zoom
3D Models
TEA2025D013TR - STMicroelectronics - 3D model - Small Outline Packages - TEA2025D013TR
click to zoom

TEA2025D013TR Details

  • Manufacturer Part Number:

    TEA2025D013TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    45 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    12.8 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Output Power-Nom:

    2.8 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    50 mA

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

TEA2025D013TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TEA2025D013TR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. The VCC pin should be connected to a voltage source that is within the recommended operating range of 3.3V to 5V.
  • The maximum power dissipation of the TEA2025D013TR is 1.4W. However, this value can vary depending on the operating conditions and the PCB layout. It's essential to ensure proper thermal management to prevent overheating.
  • The TEA2025D013TR is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermal management system to keep the device within its recommended operating temperature range.
  • To troubleshoot issues with the TEA2025D013TR, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure the device is properly decoupled. If the issue persists, consult the datasheet and application notes for guidance.
