HALOGEN AND LEAD FREE, ULTRA SMALL, SC-106A, VTFP, 3 PIN
Pin Count:
3
Manufacturer Package Code:
631AD
ECCN Code:
EAR99
Factory Lead Time:
4 Weeks
Manufacturer:
onsemi
YTEOL:
0
Configuration:
SINGLE WITH BUILT-IN DIODE AND RESISTOR
Drain Current-Max (ID):
0.001 A
FET Technology:
JUNCTION
JESD-30 Code:
R-PDSO-F3
JESD-609 Code:
e6
Moisture Sensitivity Level:
1
Number of Elements:
1
Number of Terminals:
3
Operating Mode:
DEPLETION MODE
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
N-CHANNEL
Surface Mount:
YES
Terminal Finish:
Tin/Bismuth (Sn/Bi)
Terminal Form:
FLAT
Terminal Position:
DUAL
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
TF252TH-4-TL-H Frequently Asked Questions (FAQs)
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
Ensure proper thermal management, avoid overheating, and follow the recommended operating conditions. Also, consider using a thermistor or thermocouple to monitor the temperature and adjust the system accordingly.
Handle the device by the body or pins, avoiding direct contact with the die. Use an ESD wrist strap or mat, and follow standard ESD handling procedures to prevent damage.
Yes, the TF252TH-4-TL-H is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and design guidelines.
Consult the datasheet and application notes for troubleshooting guidelines. Check for proper PCB layout, thermal management, and operating conditions. If issues persist, contact onsemi support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TF252TH-4-TL-H Overview

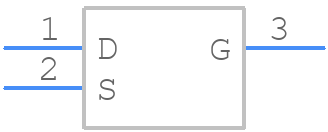

Use the download button to access the TF252TH-4-TL-H schematic symbol, PCB footprint, and 3D model.
