HALOGEN AND LEAD FREE, ULTRA SMALL, SC-106A, VTFP, 3 PIN
Pin Count:
3
Manufacturer Package Code:
631AD
ECCN Code:
EAR99
Factory Lead Time:
4 Weeks
Manufacturer:
onsemi
YTEOL:
0
Configuration:
SINGLE WITH BUILT-IN DIODE AND RESISTOR
Drain Current-Max (ID):
0.001 A
FET Technology:
JUNCTION
JESD-30 Code:
R-PDSO-F3
JESD-609 Code:
e6
Moisture Sensitivity Level:
1
Number of Elements:
1
Number of Terminals:
3
Operating Mode:
DEPLETION MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Surface Mount:
YES
Terminal Finish:
Tin/Bismuth (Sn/Bi)
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
TF252TH-5-TL-H Frequently Asked Questions (FAQs)
The recommended PCB footprint for the TF252TH-5-TL-H is a thermal pad with a minimum size of 2.5mm x 2.5mm, with a non-solder mask defined (NSMD) pad and a 0.5mm keep-out zone around the thermal pad.
To ensure reliable operation in high-temperature environments, ensure the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C, and provide adequate heat sinking and thermal management to prevent overheating.
The maximum allowed voltage transient for the TF252TH-5-TL-H is ±20% of the rated voltage, with a maximum duration of 100ms. Exceeding this may cause device damage or failure.
Yes, the TF252TH-5-TL-H can be used in a parallel configuration to increase current handling, but ensure that the devices are matched in terms of electrical characteristics and thermal performance to prevent uneven current sharing and potential reliability issues.
The recommended storage condition for the TF252TH-5-TL-H is in a dry, cool place with a relative humidity of 60% or less, and a temperature range of 5°C to 30°C. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TF252TH-5-TL-H Overview

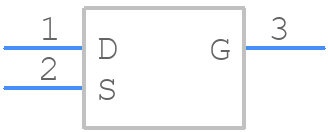

Use the download button to access the TF252TH-5-TL-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TF252,
or try a keyword search, such as Small Signal Field-Effect Transistors
