A good PCB layout for the TFA9882UK/N2Z involves keeping the audio signal traces as short as possible, using a solid ground plane, and placing the device close to the antenna. A 4-layer PCB with a dedicated ground plane is recommended. NXP provides a recommended PCB layout in the application note AN11535.
Optimizing the antenna design involves selecting the right antenna type, size, and placement. A monopole or dipole antenna is recommended. The antenna should be placed at least 10mm away from the device and other components. NXP provides antenna design guidelines in the application note AN11535.
The TFA9882UK/N2Z can handle up to 10dBm (10mW) of input power. Exceeding this limit may cause damage to the device.
Impedance matching can be achieved using a pi-network or a series inductor and shunt capacitor. NXP provides impedance matching guidelines in the application note AN11535.
The recommended operating voltage range for the TFA9882UK/N2Z is 2.7V to 5.5V. Operating outside this range may affect device performance or reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFA9882UK/N2Z Overview

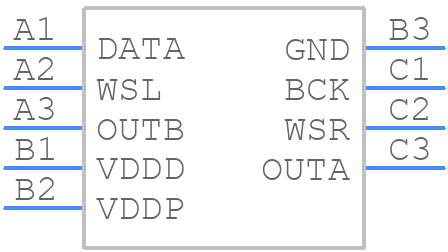

Use the download button to access the TFA9882UK/N2Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFA98,
or try a keyword search, such as Audio/Video Amplifiers
