TFP401PZP - Texas Instruments

Description: 165-MHz TMDS DVI receiver/deserializer & Panelbus™ integrated circuit

Download TFP401PZP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TFP401PZP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

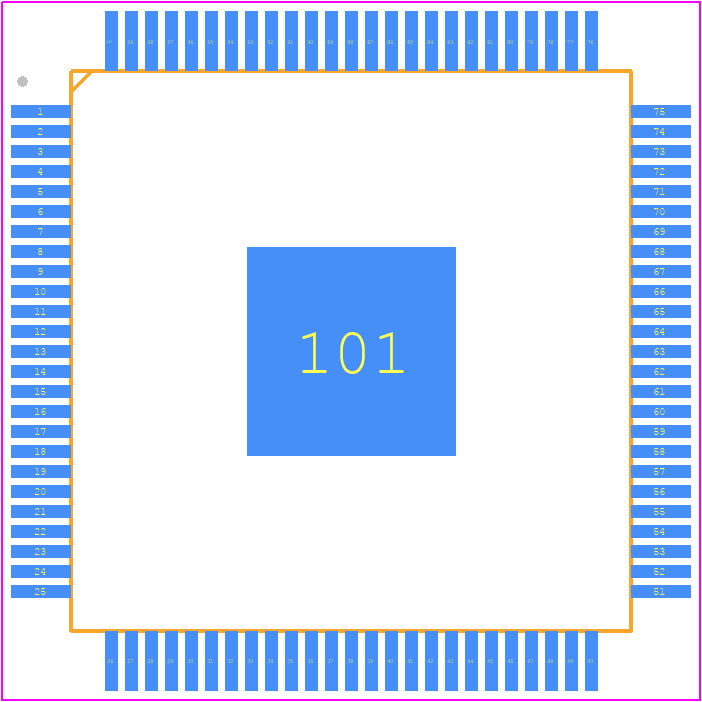

TFP401PZP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PZP (S-PQFP-G100)_1
click to zoom
3D Models
TFP401PZP - Texas Instruments - 3D model - Quad Flat Packages - PZP (S-PQFP-G100)_1
click to zoom

TFP401PZP Details

  • Manufacturer Part Number:

    TFP401PZP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    100

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP100,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    400 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

TFP401PZP Frequently Asked Questions (FAQs)

  • A good PCB layout for the TFP401PZP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded cable for the HDMI output and keeping the clock lines away from the data lines can help minimize EMI.
  • The TFP401PZP can be configured for a specific HDMI resolution and refresh rate by programming the device's registers using the I2C interface. The specific register settings will depend on the desired resolution and refresh rate, and can be found in the device's datasheet or programming guide.
  • The maximum cable length supported by the TFP401PZP depends on the HDMI version and the quality of the cable. In general, the TFP401PZP can support cable lengths of up to 30 meters for HDMI 1.4 and up to 10 meters for HDMI 2.0.
  • To troubleshoot HDMI signal integrity issues with the TFP401PZP, check the HDMI output signal using an oscilloscope or signal analyzer to verify that the signal meets the HDMI specification. Also, check the device's power supply and clock signals to ensure they are stable and within the recommended specifications.
  • Yes, the TFP401PZP can be used in a multi-lane HDMI application. The device supports up to 4 lanes, allowing it to support high-bandwidth HDMI applications such as 4K resolution at 60Hz.
