- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TFP403PZP
- Part Number TFP403PZP
- Manufacturer Texas Instruments
- Pin Count 101
- Part Category Integrated Circuit
- Package Category Quad Flat Packages

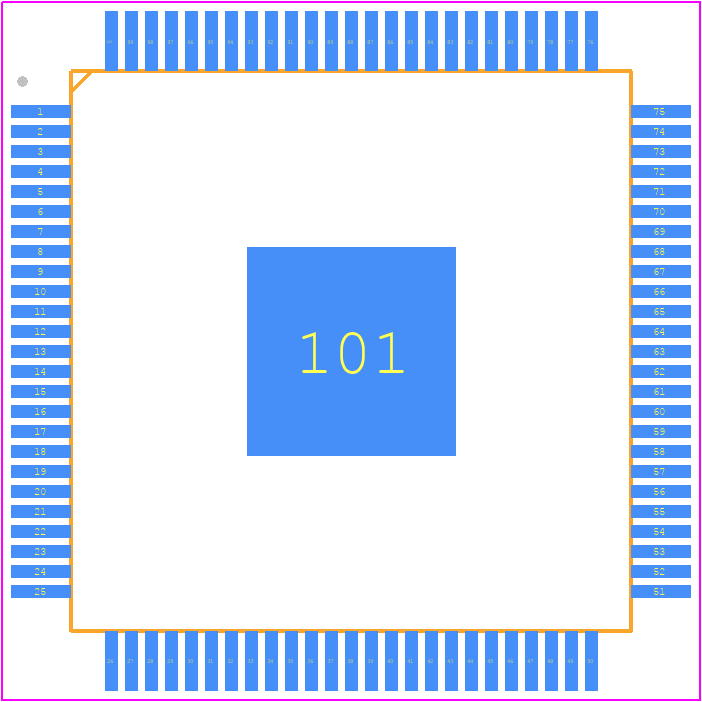

- Footprint Name Quad Flat Packages - PZP (S-PQFP-G100)_1
- Released Date Dec 17, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TFP403PZP Details
-
Manufacturer Part Number:
TFP403PZP
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Pin Count:
100
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
TFP403PZP Frequently Asked Questions (FAQs)
-
A good PCB layout for the TFP403PZP involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a common-mode choke and shielding can help reduce EMI.
-
To ensure proper cooling, make sure to provide adequate airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. The thermal pad on the bottom of the package should be connected to a solid ground plane to help dissipate heat.
-
The maximum cable length depends on the specific application and the type of cable used. As a general rule, keep the cable length as short as possible to minimize signal degradation and EMI. For HDMI applications, the maximum cable length is typically around 10 meters.
-
To troubleshoot issues with the TFP403PZP, start by checking the power supply voltage and ensuring it is within the recommended range. Then, verify that the input and output signals are correct and that the device is properly configured. Use an oscilloscope to check the signal integrity and look for signs of signal degradation or distortion.
-
The TFP403PZP is designed to operate from a single 3.3V power supply. If your design requires a different voltage supply, you may need to use a voltage regulator or level shifter to ensure compatibility. However, be sure to check the datasheet for any specific voltage requirements and limitations.
Trust Checks
Community Provided
System Verified
Community Approved
TFP403PZP Overview
Use the download button to access the TFP403PZP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFP40,
or try a keyword search, such as Other Consumer ICs
