The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier Electronics Inc to ensure the capacitor's reliability and performance.
Yes, the THA122M100AD1C is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its reliability in applications with mechanical stress. However, it's essential to follow proper mounting and installation procedures to ensure the capacitor's performance and longevity.
The THA122M100AD1C is rated for operation up to 125°C (257°F). While it can withstand high temperatures, its capacitance and ESR may degrade over time. It's essential to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet to ensure reliable operation.
Yes, the THA122M100AD1C is suitable for use in high-reliability applications. It meets the requirements of MIL-PRF-39006, which ensures its performance and reliability in demanding environments. However, it's essential to follow proper qualification and testing procedures to ensure the capacitor meets the specific requirements of the application.
The THA122M100AD1C is designed to operate in environments with relative humidity up to 95%. However, it's essential to follow proper conformal coating and sealing procedures to ensure the capacitor's performance and reliability in humid or moist environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THA122M100AD1C Overview

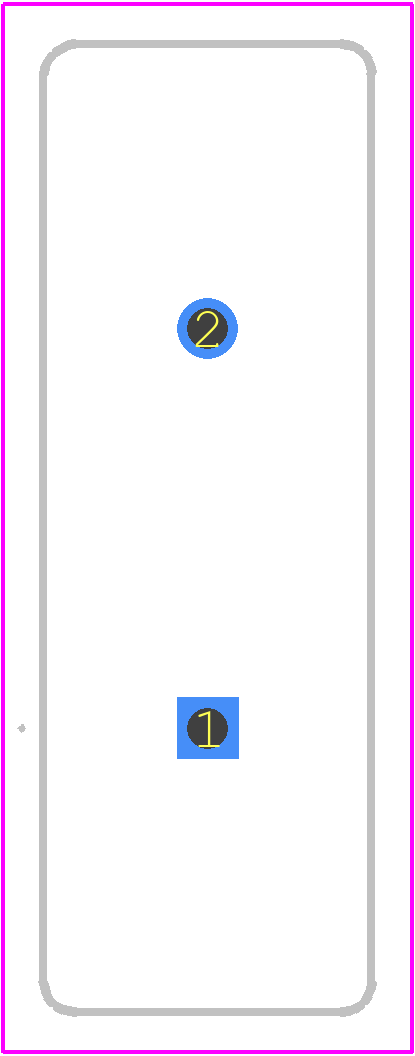

Use the download button to access the THA122M100AD1C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THA12,
or try a keyword search, such as Aluminum Electrolytic Capacitors
