Texas Instruments provides a recommended PCB layout in the THS0842IPFB evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS0842IPFB datasheet and application notes, including considerations for signal amplitude, frequency, and impedance matching.
The THS0842IPFB is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at higher temperatures. Consult the datasheet and reliability reports for more information.
To ensure EMC and EMI compliance, follow proper PCB design and layout practices, use shielding and filtering components as needed, and consider the device's radiation patterns and susceptibility to interference. TI provides guidelines and resources for EMC and EMI compliance in the THS0842IPFB datasheet and application notes.
Proper power supply decoupling and filtering are crucial for the THS0842IPFB's performance and reliability. TI recommends using a combination of ceramic and electrolytic capacitors, as well as ferrite beads or inductors, to filter out noise and ripple on the power supply lines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
THS0842IPFB Overview

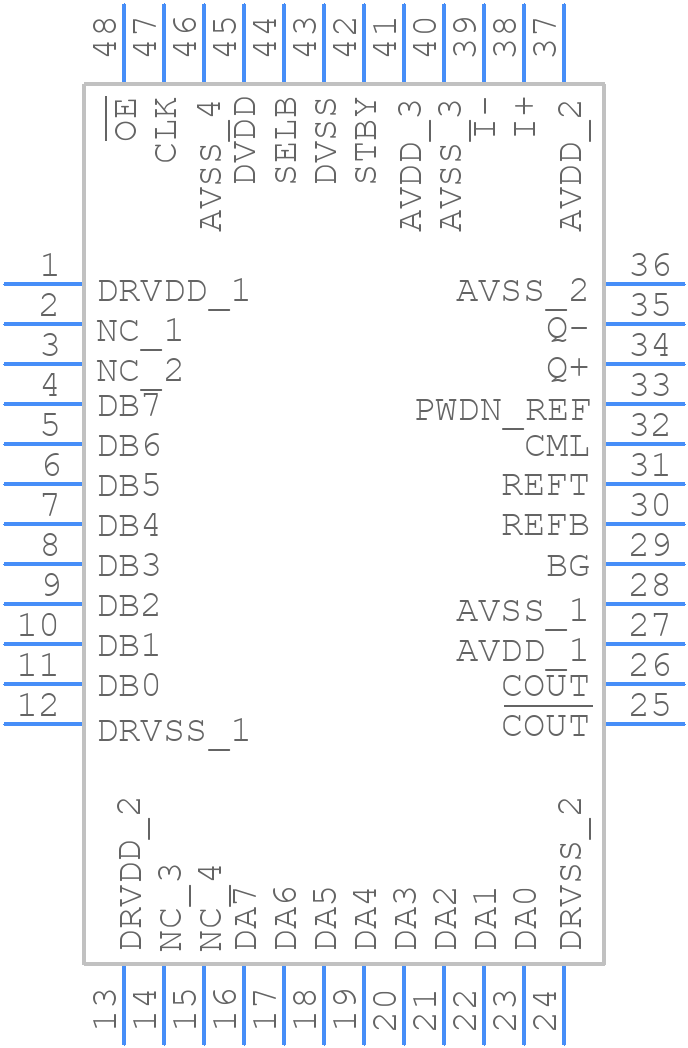

Use the download button to access the THS0842IPFB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS08,
or try a keyword search, such as Analog to Digital Converters
