THS1007IDA - Texas Instruments

Description: 10-Bit, 6 MSPS Simultaneous Sampling Quad Ch. ADC; Includes Parallel DSP/uP I/F & Ch. Auto-Scan

Download THS1007IDA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

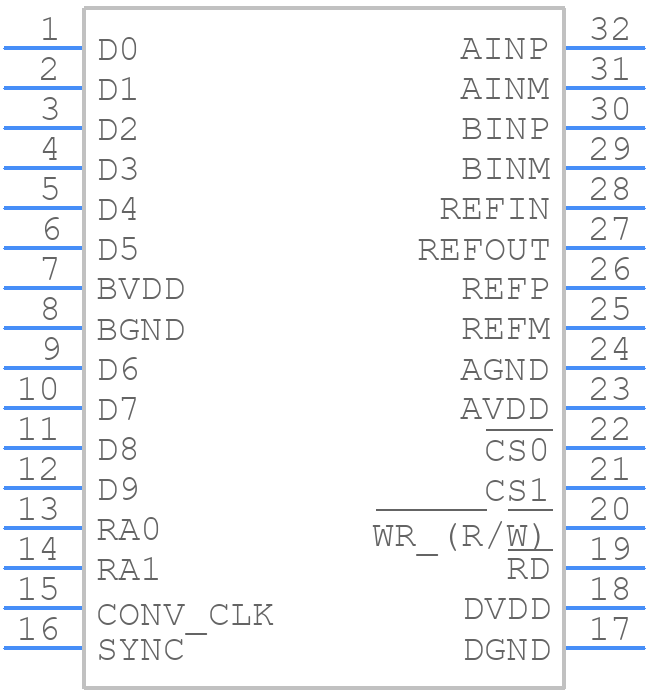

Symbol
THS1007IDA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS1007IDA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DA(R-PDSO-G32)
click to zoom
3D Models
THS1007IDA - Texas Instruments - 3D model - Small Outline Packages - DA(R-PDSO-G32)
click to zoom

THS1007IDA Details

  • Manufacturer Part Number:

    THS1007IDA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-32

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    4 V

  • Analog Input Voltage-Min:

    1.4 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    4

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP32,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    6 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

THS1007IDA Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS1007IDA evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The input termination resistors (RIN) should be chosen based on the source impedance of the signal and the desired input impedance of the amplifier. A general guideline is to choose RIN = 2 * ZS, where ZS is the source impedance. However, the optimal value may vary depending on the specific application and signal characteristics.
  • The maximum power dissipation of the THS1007IDA is 1.4W. To ensure it doesn't overheat, the device should be mounted on a PCB with a sufficient thermal pad and heat sink, and the ambient temperature should be kept below 85°C. Additionally, the device's power consumption should be monitored and controlled to prevent excessive heat generation.
  • The THS1007IDA has a built-in anti-aliasing filter, but additional filtering may be necessary depending on the specific application. A low-pass filter can be added at the input or output of the amplifier to filter out high-frequency noise and aliasing. The filter design should be based on the specific signal characteristics and requirements of the application.
  • The recommended supply voltage for the THS1007IDA is 5V ± 10%. A decoupling capacitor of 0.1uF to 1uF should be placed close to the device's power pins to filter out noise and ensure stable operation. Additional decoupling capacitors may be necessary depending on the specific application and power supply characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS1007IDA Overview

Use the download button to access the THS1007IDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS10, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
