Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to place the device close to the power supply and use a low-ESR capacitor for decoupling.
The THS1030CPWR requires a single 3.3V or 5V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean power supply. Decoupling capacitors should be placed as close as possible to the device, with a recommended value of 0.1uF to 1uF. Additionally, it's recommended to use a 10uF to 22uF bulk capacitor to filter out noise and ripple.
The THS1030CPWR is a high-speed amplifier that can support data rates up to 1.5Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and USB 3.0.
The THS1030CPWR can be configured for differential or single-ended input modes by connecting the input pins accordingly. For differential input mode, connect the positive input signal to the IN+ pin and the negative input signal to the IN- pin. For single-ended input mode, connect the input signal to the IN+ pin and tie the IN- pin to ground through a resistor.
The typical power consumption of the THS1030CPWR is around 120mW to 150mW, depending on the supply voltage and operating conditions. This makes it suitable for power-sensitive applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS1030CPWR Overview

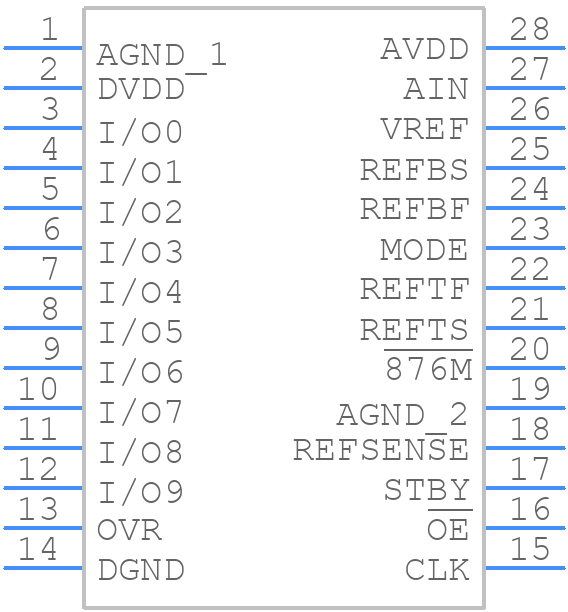

Use the download button to access the THS1030CPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS10,
or try a keyword search, such as Analog to Digital Converters
