Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance.
The gain setting depends on the specific application requirements. The THS1031CPW has a variable gain amplifier, and the gain can be set using external resistors. Consult the datasheet for gain calculation formulas and examples to determine the correct gain setting for your application.
The maximum input signal amplitude is not explicitly stated in the datasheet, but it's limited by the device's input voltage range and the desired output signal amplitude. As a general rule, keep the input signal amplitude below 2Vpp to ensure linear operation and avoid clipping.
Yes, the THS1031CPW can be used as a single-ended amplifier by tying the negative input to ground and using the positive input as the signal input. However, this configuration may compromise the amplifier's common-mode rejection ratio (CMRR) and noise performance.
The THS1031CPW has a relatively high bandwidth, making it susceptible to noise and unwanted signals. Use external filters, such as RC filters or LC filters, to filter out unwanted signals and noise. Additionally, consider using shielding and grounding techniques to minimize electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS1031CPW Overview

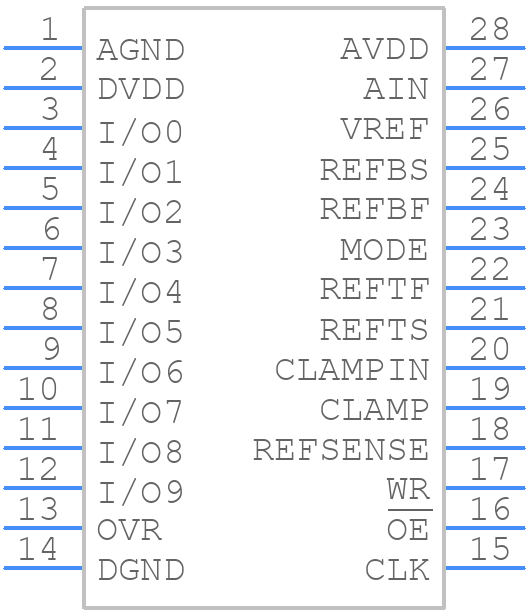

Use the download button to access the THS1031CPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS10,
or try a keyword search, such as Analog to Digital Converters
