Texas Instruments provides a recommended PCB layout in the THS1041 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To minimize high-frequency noise and EMI, use proper shielding, grounding, and decoupling techniques. Place the THS1041 close to the analog signal sources, use short traces, and add bypass capacitors to the power supply pins. Additionally, consider using a common-mode choke or ferrite bead to filter out high-frequency noise.
The THS1041 is specified to operate from -40°C to 125°C, but it's recommended to derate the device's performance at extreme temperatures. Consult the datasheet for temperature-related specifications and derating guidelines.
The THS1041 is a commercial-grade device, but Texas Instruments offers a space-grade version, the THS1041BQMDG4, which is designed for high-reliability and aerospace applications. Consult the datasheet and Texas Instruments' documentation for more information on the space-grade version.
To troubleshoot oscillations or instability, check the power supply decoupling, ensure proper grounding, and verify that the input and output impedances are matched. Also, review the THS1041's stability analysis and compensation techniques in the datasheet and application notes. If issues persist, consult Texas Instruments' support resources or seek assistance from a qualified engineer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS1041CPWG4 Overview

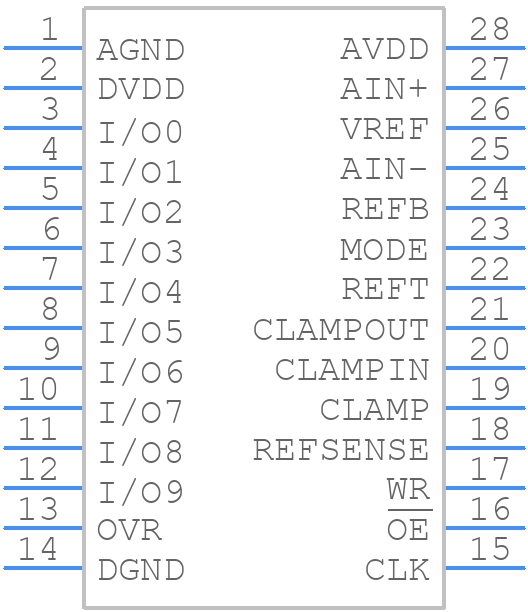

Use the download button to access the THS1041CPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS10,
or try a keyword search, such as Analog to Digital Converters
