Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to place the device close to the analog-to-digital converter (ADC) and use a local decoupling capacitor to reduce noise.
To optimize the THS1206QDA for low-power operation, it's recommended to use the lowest possible supply voltage (e.g., 2.5V), reduce the clock frequency, and use the power-down mode when not in use. Additionally, consider using a lower-power ADC and optimizing the system's overall power budget.
The maximum clock frequency that can be used with the THS1206QDA is 120 MHz, but it's recommended to use a clock frequency of 100 MHz or less to ensure optimal performance and minimize jitter.
The THS1206QDA outputs data in a 12-bit, two's complement format. To handle this data, it's recommended to use a microcontroller or FPGA with a 12-bit or 16-bit data bus, and to perform any necessary data formatting or processing in software.
The recommended input signal range for the THS1206QDA is 0V to 2.5V, but it can accept input signals up to 3.5V. However, it's recommended to use an input signal range of 0V to 2.5V to ensure optimal performance and linearity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS1206QDA Overview

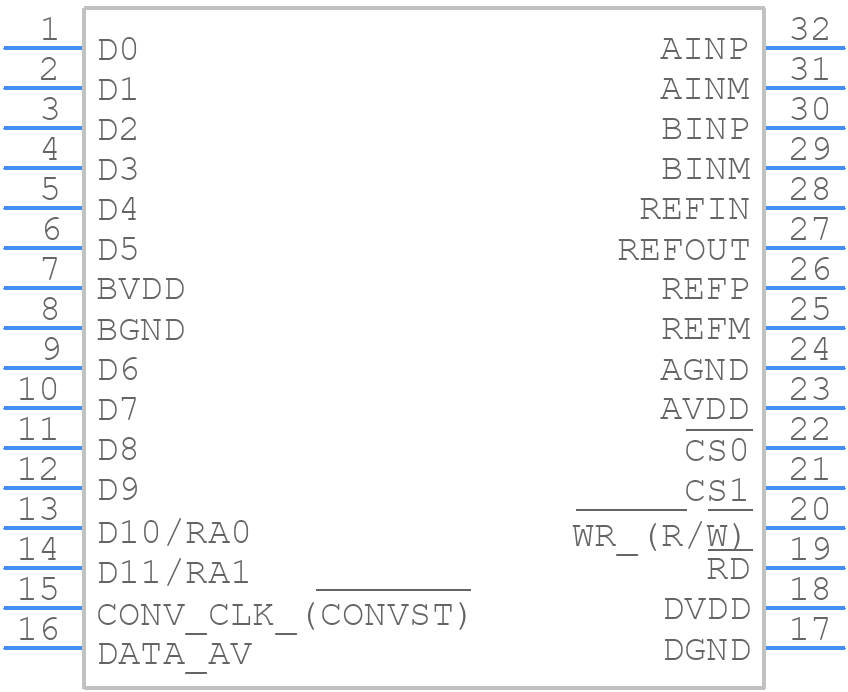

Use the download button to access the THS1206QDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
