Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and keeping the input and output traces separate.
The gain setting depends on the specific application requirements. The THS12082CDA has a variable gain amplifier (VGA) that can be set using the GAIN pin. Consult the datasheet for gain setting equations and examples to determine the optimal gain for your specific use case.
The maximum input signal amplitude is limited by the device's input voltage range, which is ±1.4V. Exceeding this limit can result in signal distortion or device damage. Ensure that the input signal is properly attenuated or amplified to stay within this range.
To ensure stability, follow the recommended PCB layout, use a stable power supply, and decouple the power pins with capacitors. Additionally, ensure that the input and output impedances are properly matched, and the gain is set correctly. Consult the datasheet for more information on stability and oscillation prevention.
The typical power consumption of the THS12082CDA is around 130mW at a supply voltage of 5V. However, this can vary depending on the specific application, gain setting, and operating frequency. Consult the datasheet for more information on power consumption and thermal considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS12082CDA Overview

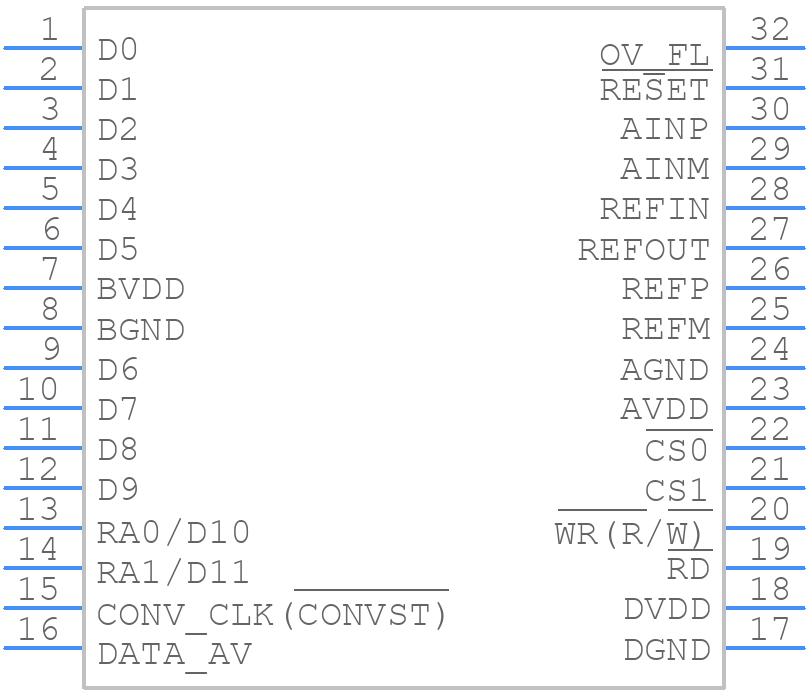

Use the download button to access the THS12082CDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
