A good PCB layout for the THS1408IPFB involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power decoupling.
To optimize the THS1408IPFB for low-power operation, use the lowest possible supply voltage, reduce the clock frequency, and disable the internal bias circuitry when not in use. Additionally, consider using the device's power-down mode to reduce power consumption when the device is not in use.
The THS1408IPFB can handle input signal amplitudes up to 2.5Vpp differential, but it's recommended to keep the input signal amplitude below 2Vpp to ensure optimal performance and to prevent distortion.
To ensure proper termination for high-speed signals, use a 50Ω termination resistor in series with the input signal, and place the resistor as close to the device's input pins as possible. Additionally, use a low-capacitance, high-frequency bypass capacitor to decouple the power supply.
The recommended clock frequency range for the THS1408IPFB is 10MHz to 140MHz, but the device can operate at clock frequencies up to 160MHz with reduced performance. It's recommended to use a clock frequency that is a multiple of the sampling frequency to minimize jitter and ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS1408IPFB Overview

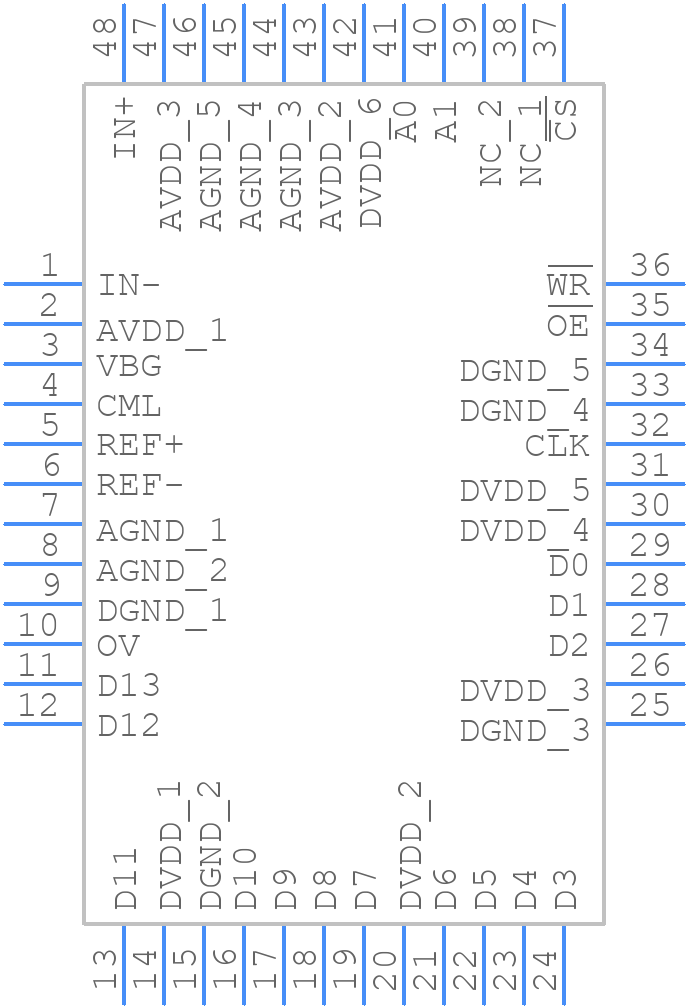

Use the download button to access the THS1408IPFB schematic symbol, PCB footprint, and 3D model.
