SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Nom:
6500 V/us
Supply Current-Max:
9 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD SILVER
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
420000
Wideband:
YES
Width:
3 mm
THS3001IDGN Frequently Asked Questions (FAQs)
A good PCB layout for the THS3001IDGN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) in the feedback path. Additionally, the gain and phase margins should be checked to ensure they meet the stability criteria.
The maximum power dissipation of the THS3001IDGN is dependent on the ambient temperature and the thermal resistance of the package. The power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout). The maximum power dissipation is typically around 2.5W.
Yes, the THS3001IDGN can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and the output impedance is matched to the load impedance. Additionally, the gain bandwidth product should be considered to ensure stability.
To filter out noise and ripple, a low-pass filter can be added at the output of the THS3001IDGN. A simple RC filter or a more complex active filter can be used, depending on the specific requirements. Additionally, using a high-quality output capacitor with low ESR can help reduce ripple and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3001IDGN Overview

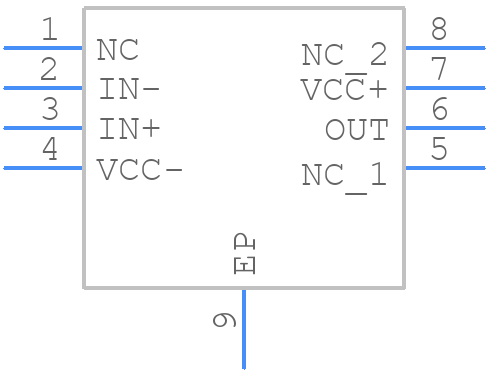

Use the download button to access the THS3001IDGN schematic symbol, PCB footprint, and 3D model.
