A good PCB layout for the THS3092DDA involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The gain resistor values for the THS3092DDA depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the gain resistor calculator provided by Texas Instruments or to consult the application notes. It's also important to consider the parasitic capacitance and inductance of the resistors when selecting the values.
The maximum power dissipation of the THS3092DDA is 2.5W. To ensure you don't exceed it, you need to calculate the power dissipation based on the output current, voltage, and package thermal resistance. You can use the thermal calculation tool provided by Texas Instruments or consult the datasheet for more information.
To filter out high-frequency noise and EMI, you can use a combination of passive filters, such as RC filters or LC filters, and shielding techniques, such as using a metal enclosure or a shielded cable. Additionally, you can use the THS3092DDA's built-in filter capabilities, such as the adjustable high-pass filter, to reject high-frequency noise.
Key considerations for thermal management when using the THS3092DDA include ensuring good airflow around the device, using a heat sink or thermal pad, and minimizing the thermal resistance of the PCB. You should also consider the junction-to-ambient thermal resistance and the maximum junction temperature to ensure the device operates within its recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3092DDA Overview

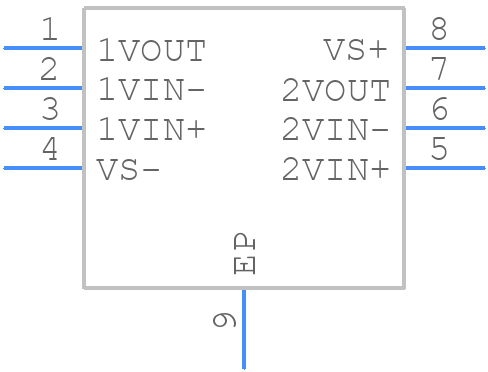

Use the download button to access the THS3092DDA schematic symbol, PCB footprint, and 3D model.
