Texas Instruments provides a recommended PCB layout in the THS3110IDR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS3110IDR datasheet and application notes, including considerations for impedance matching, signal attenuation, and noise reduction.
The THS3110IDR is specified to operate from -40°C to 125°C, but it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation in extreme temperature environments.
To ensure EMC and EMI compliance, follow proper PCB design and layout practices, use shielding and filtering techniques, and consider the device's electromagnetic susceptibility and emissions characteristics, as outlined in the THS3110IDR datasheet and application notes.
TI recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, along with filtering techniques such as ferrite beads and LC filters, to minimize noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3110IDR Overview

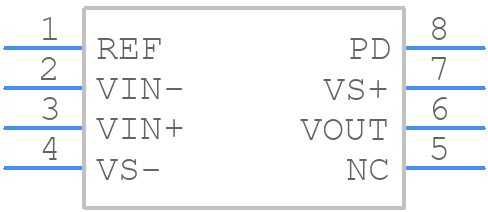

Use the download button to access the THS3110IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS31,
or try a keyword search, such as Operational Amplifiers
