A good PCB layout for the THS3121CD involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
The gain resistor values depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific requirements of your application. You can also use the THS3121CD's gain calculator tool provided by Texas Instruments to help with the selection.
The maximum power dissipation of the THS3121CD is 2.5W. To ensure you don't exceed it, you need to calculate the power dissipation based on the output current, voltage, and package thermal resistance. You can use the thermal calculation tool provided by Texas Instruments to help with the calculation.
To filter out noise and interference, you can use a combination of passive and active filtering techniques. For example, you can use a low-pass filter at the input of the THS3121CD to filter out high-frequency noise, and a ferrite bead or a common-mode choke to filter out electromagnetic interference.
The recommended operating temperature range for the THS3121CD is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance. It's essential to ensure the device is operated within the recommended temperature range to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3121CD Overview

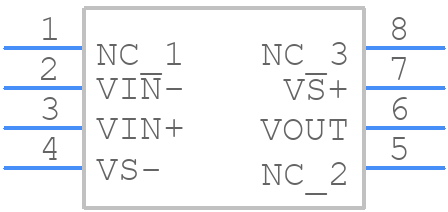

Use the download button to access the THS3121CD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS31,
or try a keyword search, such as Operational Amplifiers
