THS3201D - Texas Instruments

Description: Texas Instruments THS3201D Current Feedback Op Amp, 12 V, 9 V, 8-Pin SOIC

Download THS3201D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

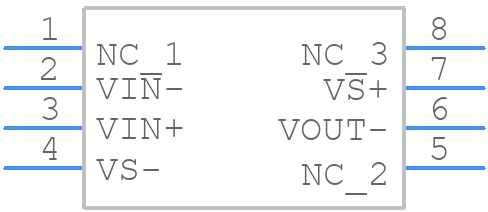

THS3201D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS3201D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G8)
click to zoom
3D Models
THS3201D - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G8)
click to zoom

THS3201D Details

  • Manufacturer Part Number:

    THS3201D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Bias Current-Max (IIB) @25C:

    35 µA

  • Common-mode Reject Ratio-Min:

    58 dB

  • Common-mode Reject Ratio-Nom:

    71 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -8.25 V

  • Neg Supply Voltage-Nom (Vsup):

    -7.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    6700 V/us

  • Supply Current-Max:

    21 mA

  • Supply Voltage Limit-Max:

    8.25 V

  • Supply Voltage-Nom (Vsup):

    7.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1800000

  • Wideband:

    YES

  • Width:

    3.9 mm

THS3201D Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS3201D involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The gain resistor values depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the parasitic capacitance and inductance of the resistors.
  • The maximum power dissipation of the THS3201D is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and keep the device away from other heat sources. Also, ensure good airflow around the device and avoid operating it at maximum power for extended periods.
  • To filter out noise and interference, use a low-pass filter or a band-pass filter at the input of the THS3201D. You can also use a ferrite bead or a common-mode choke to filter out high-frequency noise. Additionally, use shielding and grounding techniques to minimize electromagnetic interference.
  • The recommended input impedance for the THS3201D is 50 ohms, and the recommended output impedance is 50 ohms or lower. This ensures maximum power transfer and minimal signal reflection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS3201D Overview

Use the download button to access the THS3201D schematic symbol, PCB footprint, and 3D model.
