Texas Instruments provides a recommended PCB layout in the THS3201DG4 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input termination resistors depend on the specific application and signal source. TI provides a termination resistor calculator tool to help select the correct values based on the signal frequency, amplitude, and source impedance.
The THS3201DG4 is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at higher temperatures. Consult the datasheet and application notes for more information.
Yes, the THS3201DG4 can be used in a non-inverting amplifier configuration, but it requires a different set of external components and gain-setting resistors. Consult the datasheet and application notes for specific guidance on non-inverting amplifier configurations.
To minimize EMI, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding or filtering components. TI also provides EMI reduction guidelines in the THS3201DG4 datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3201DG4 Overview

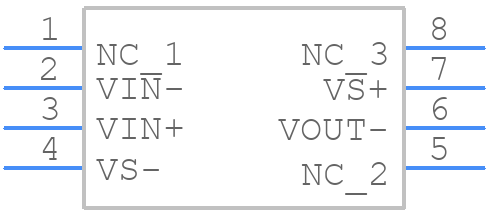

Use the download button to access the THS3201DG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS32,
or try a keyword search, such as Operational Amplifiers
