SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Power:
NO
Programmable Power:
NO
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
6700 V/us
Supply Current-Max:
21 mA
Supply Voltage Limit-Max:
8.25 V
Supply Voltage-Nom (Vsup):
7.5 V
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Unity Gain BW-Nom:
1800000
Wideband:
YES
Width:
3 mm
THS3201DGNRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS3201DGNRG4 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input termination resistors depend on the specific application and signal source. TI provides a termination resistor calculator tool to help select the correct values based on the signal frequency, amplitude, and source impedance.
The THS3201DGNRG4 is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at higher temperatures. Consult the datasheet and application notes for more information.
Yes, the THS3201DGNRG4 can be used in a non-inverting amplifier configuration. However, it's crucial to ensure that the input common-mode voltage is within the specified range, and the output voltage swing is not limited by the supply voltage.
To minimize EMI, follow proper PCB layout practices, such as separating analog and digital grounds, using shielding, and placing bypass capacitors close to the device. Additionally, consider using EMI filters or common-mode chokes to reduce radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3201DGNRG4 Overview

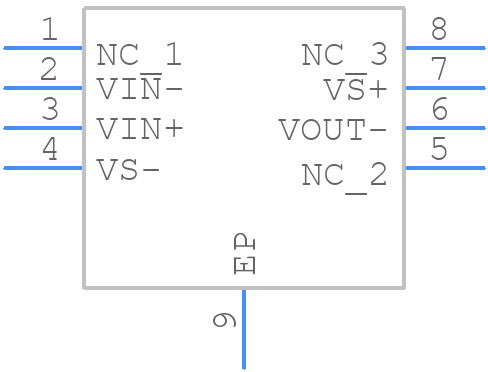

Use the download button to access the THS3201DGNRG4 schematic symbol, PCB footprint, and 3D model.
