THS3217IRGVT - Texas Instruments

Description: DC to 800-MHz, Differential-to-Single-Ended, DAC Output Amplifier

Download THS3217IRGVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

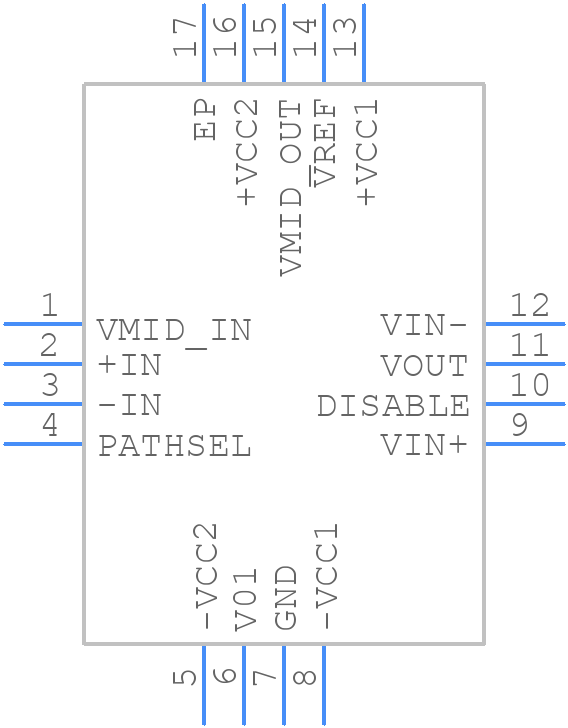

THS3217IRGVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS3217IRGVT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)_1
click to zoom
3D Models
THS3217IRGVT - Texas Instruments - 3D model - Quad Flat No-Lead - RGV (S-PVQFN-N16)_1
click to zoom

THS3217IRGVT Details

  • Manufacturer Part Number:

    THS3217IRGVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-03-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage-Max (Vsup):

    -4 V

  • Neg Supply Voltage-Min (Vsup):

    -7.9 V

  • Neg Supply Voltage-Nom (Vsup):

    -6 V

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    7.9 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

THS3217IRGVT Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS3217IRGVT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input and output termination resistors for the THS3217IRGVT depend on the specific application and the impedance of the transmission line. A good starting point is to use 50-ohm resistors for both input and output termination. However, the optimal value may need to be adjusted based on the specific system requirements.
  • The THS3217IRGVT has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
  • To ensure EMC with the THS3217IRGVT, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, follow good PCB layout practices and use a solid ground plane.
  • The recommended power sequencing for the THS3217IRGVT is to power up the device's VCC pin before the input signal is applied. The power-down sequence should be reversed, with the input signal removed before the VCC pin is powered down.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS3217IRGVT Overview

Use the download button to access the THS3217IRGVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS32, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
