SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Nom:
470 V/us
Supply Current-Max:
20 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
350000
Voltage Gain-Min:
20000
Wideband:
YES
Width:
3 mm
THS4022IDGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4022IDGN evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output capacitors depends on the specific application requirements, such as frequency response, noise tolerance, and power supply rejection. TI recommends using X7R or X5R ceramic capacitors with a minimum capacitance of 10nF for input and output filtering, and a maximum ESR of 1 ohm.
The THS4022IDGN is specified to operate from -40°C to 125°C, but it's recommended to derate the device's performance and power dissipation at higher temperatures to ensure reliability and prevent thermal shutdown.
TI provides a detailed application note (SLVAE04) that covers biasing and configuration guidelines for the THS4022IDGN, including setting the gain, bandwidth, and output voltage swing. Additionally, the THS4022IDGN evaluation module documentation provides a step-by-step guide for configuring the device.
The THS4022IDGN is a high-speed, low-noise op-amp with a unique combination of features, including a 150MHz bandwidth, 12nV/√Hz noise density, and 1.5mA quiescent current. Compared to other TI op-amps, the THS4022IDGN offers a higher bandwidth and lower noise, making it suitable for high-frequency and high-precision applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4022IDGN Overview

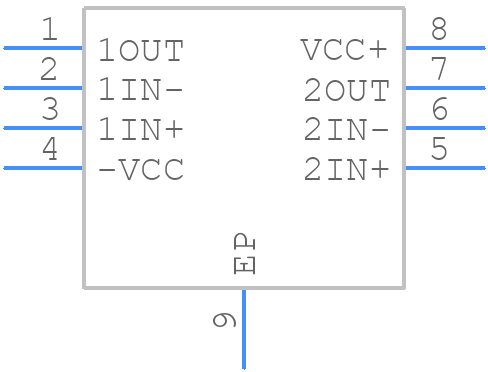

Use the download button to access the THS4022IDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40,
or try a keyword search, such as Operational Amplifiers
