THS4032IDGN - Texas Instruments

Description: 100-MHz Low Noise Voltage-Feedback Amplifier, Dual

Download THS4032IDGN Model

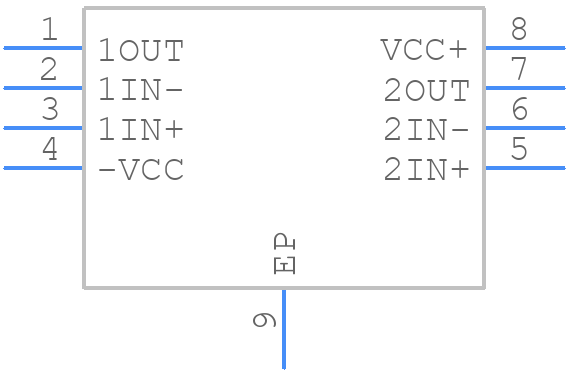

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4032IDGN - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D -2021
click to zoom
3D Models
THS4032IDGN - Texas Instruments  - 3D model - Small Outline Packages - DGN0008D -2021
click to zoom

THS4032IDGN Details

  • Manufacturer Part Number:

    THS4032IDGN

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8 µA

  • Bandwidth (3dB)-Nom:

    90 MHz

  • Bias Current-Max (IIB) @25C:

    20 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.25 µA

  • Input Offset Voltage-Max:

    2000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Slew Rate-Nom:

    100 V/us

  • Supply Current-Max:

    20 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    100000

  • Voltage Gain-Min:

    35000

  • Wideband:

    YES

  • Width:

    3 mm

THS4032IDGN Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS4032IDGN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input and output termination resistors for the THS4032IDGN depend on the specific application and the impedance of the transmission line. A good starting point is to use 50-ohm resistors for both input and output termination. However, the optimal value may need to be adjusted based on the specific system requirements.
  • The maximum power dissipation of the THS4032IDGN is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and keep the device away from other heat sources. Also, ensure good airflow around the device and avoid blocking the airflow.
  • To filter out EMI when using the THS4032IDGN, use a combination of shielding, filtering, and grounding techniques. Use a metal shield around the device, and add EMI filters such as ferrite beads or common-mode chokes to the input and output lines. Also, ensure good grounding practices, such as using a solid ground plane and connecting the device to a low-impedance ground point.
  • The recommended operating voltage range for the THS4032IDGN is 3.3V to 5V. However, the device can operate from 2.7V to 5.5V, but the performance may vary. It's recommended to operate the device within the recommended voltage range for optimal performance.
