SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
100 V/us
Supply Current-Max:
20 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
200000
Voltage Gain-Min:
35000
Wideband:
YES
Width:
3 mm
THS4032MDGNREP Frequently Asked Questions (FAQs)
A good PCB layout for the THS4032MDGNREP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) in the feedback path to reduce the Q of the circuit. Additionally, ensure that the input and output impedances are matched to minimize reflections.
The maximum power dissipation of the THS4032MDGNREP is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated to 0.7W at 85°C ambient temperature.
The THS4032MDGNREP is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper thermal management to prevent overheating.
To filter out noise and ripple, add a low-pass filter (LPF) or a pi-filter (π-filter) at the output of the THS4032MDGNREP. The LPF can be a simple RC filter, while the π-filter consists of a series inductor and two shunt capacitors. The filter components should be chosen based on the specific noise frequency and amplitude.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4032MDGNREP Overview

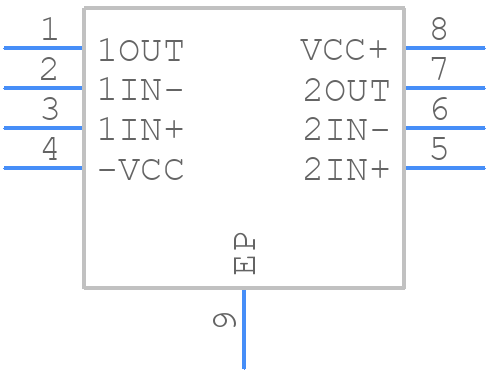

Use the download button to access the THS4032MDGNREP schematic symbol, PCB footprint, and 3D model.
