Texas Instruments provides a recommended PCB layout in the THS4042 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS4042 datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS4042 is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at extreme temperatures. Consult the datasheet and TI's reliability documentation for more information.
To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. TI also provides EMC guidelines and application notes for the THS4042.
TI recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with a minimum of 10uF of capacitance per power pin. The decoupling scheme should be placed close to the device and connected to a solid ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4042CDGNR Overview

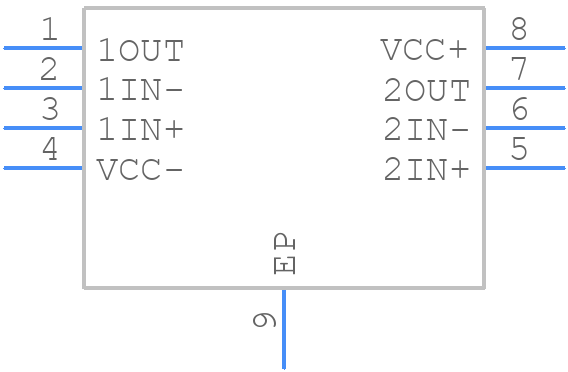

Use the download button to access the THS4042CDGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40,
or try a keyword search, such as Operational Amplifiers
