THS4052CDGNR - Texas Instruments

Description: 70-MHz Low-Cost Voltage-Feedback Amplifier, Dual

Download THS4052CDGNR Model

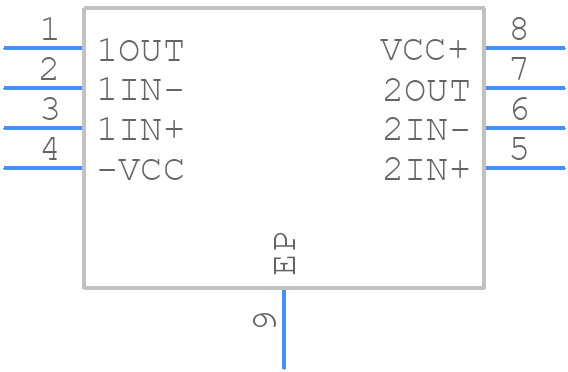

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4052CDGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN (S-PDSO-G8)(1)
click to zoom
3D Models
THS4052CDGNR - Texas Instruments  - 3D model - Small Outline Packages - DGN (S-PDSO-G8)(1)
click to zoom

THS4052CDGNR Details

  • Manufacturer Part Number:

    THS4052CDGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8 µA

  • Bandwidth (3dB)-Nom:

    70 MHz

  • Bias Current-Max (IIB) @25C:

    6 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.25 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -16.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Slew Rate-Min:

    240 V/us

  • Slew Rate-Nom:

    240 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    10.5 mA

  • Supply Voltage Limit-Max:

    16.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    70000

  • Voltage Gain-Min:

    2000

  • Wideband:

    YES

  • Width:

    3 mm

THS4052CDGNR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
  • The THS4052CDGNR has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal relief pattern on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if the device is expected to operate at high temperatures.
  • The THS4052CDGNR requires a 50-ohm termination at the input and output pins to ensure proper signal integrity. A series resistor and shunt capacitor can be used to create a 50-ohm termination network.
  • The THS4052CDGNR has a gain setting pin (GAIN) that can be connected to a resistor network to set the desired gain. The datasheet provides a gain setting table and equation to calculate the required resistor values.
  • The THS4052CDGNR has a maximum operating frequency of 1.5 GHz, but the actual frequency response may vary depending on the specific application and PCB layout.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS4052CDGNR Overview

Use the download button to access the THS4052CDGNR schematic symbol, PCB footprint, and 3D model.
