SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Min:
240 V/us
Slew Rate-Nom:
240 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
10.5 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
70000
Voltage Gain-Min:
2000
Wideband:
YES
Width:
3 mm
THS4052IDGNR Frequently Asked Questions (FAQs)
A good PCB layout for the THS4052IDGNR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability and prevent oscillations, make sure to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) in the feedback path. Additionally, ensure that the gain and phase margins are sufficient by checking the loop gain and phase plots.
The maximum power dissipation of the THS4052IDGNR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
Yes, the THS4052IDGNR can be used as a unity-gain buffer. However, it's essential to ensure that the input and output impedances are matched to prevent signal reflections and oscillations. Additionally, the device's bandwidth and slew rate should be considered to ensure that the signal is not distorted.
To protect the THS4052IDGNR from overvoltage and ESD, use voltage clamps or transient voltage suppressors (TVS) on the input and output pins. Additionally, follow proper ESD handling and storage procedures to prevent damage during manufacturing and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4052IDGNR Overview

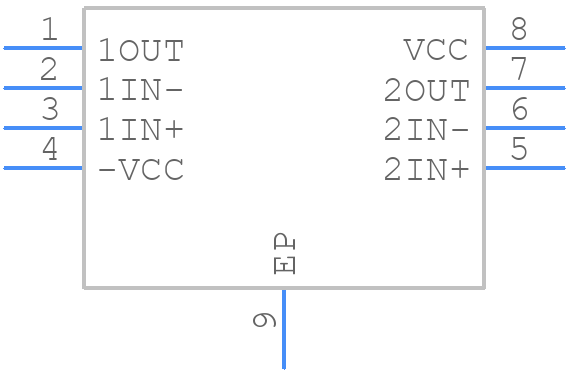

Use the download button to access the THS4052IDGNR schematic symbol, PCB footprint, and 3D model.
