SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Min:
400 V/us
Slew Rate-Nom:
400 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
10.5 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
180000
Voltage Gain-Min:
5000
Wideband:
YES
Width:
3 mm
THS4061IDGNR Frequently Asked Questions (FAQs)
A good PCB layout for the THS4061IDGNR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
The choice of gain resistors depends on the desired gain and bandwidth of the amplifier. A higher gain resistor value will result in a higher gain, but may also reduce the bandwidth. A good starting point is to use the recommended values in the datasheet, and then adjust based on the specific application requirements.
The maximum power dissipation of the THS4061IDGNR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
Yes, the THS4061IDGNR can be used as a line driver. Its high output current and low output impedance make it suitable for driving cables and other loads. However, the output stage should be properly terminated to avoid reflections and ensure signal integrity.
The THS4061IDGNR has a high common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR), which helps to reject noise and interference. Additionally, external filters such as RC filters or ferrite beads can be used to further reduce noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4061IDGNR Overview

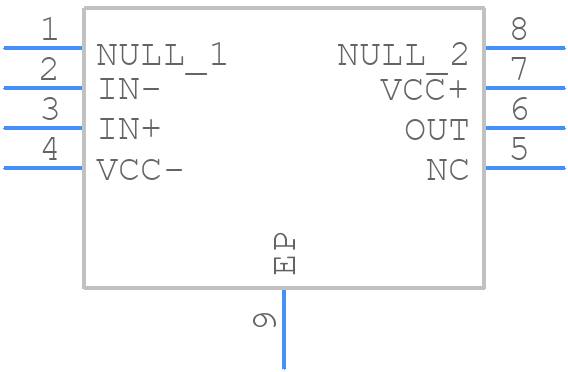

Use the download button to access the THS4061IDGNR schematic symbol, PCB footprint, and 3D model.
