SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Min:
400 V/us
Slew Rate-Nom:
400 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
21 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
180000
Voltage Gain-Min:
5000
Wideband:
YES
Width:
3 mm
THS4062CDGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
The input termination depends on the specific application and signal source. For example, if the signal source has a 50-ohm output impedance, a 50-ohm input termination is recommended. If the signal source has a high impedance, a higher input termination value may be needed to prevent signal reflections.
The THS4062CDGN has an operating temperature range of -40°C to 125°C, but it's important to note that the device's performance may degrade at higher temperatures. It's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance.
The THS4062CDGN has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials.
Texas Instruments recommends using a 10-uF ceramic capacitor and a 1-uF ceramic capacitor in parallel, placed as close as possible to the power supply pins. This helps to filter out noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4062CDGN Overview

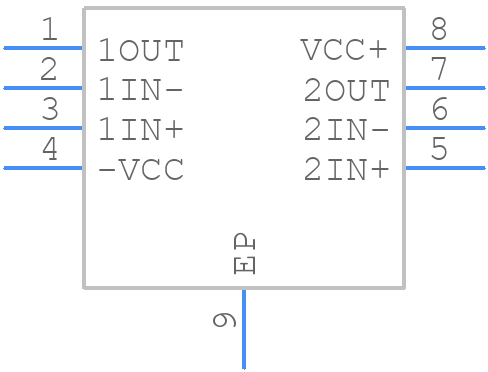

Use the download button to access the THS4062CDGN schematic symbol, PCB footprint, and 3D model.
