SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Min:
400 V/us
Slew Rate-Nom:
400 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
21 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
180000
Voltage Gain-Min:
5000
Wideband:
YES
Width:
3 mm
THS4062IDGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4062IDGN evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS4062IDGN datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS4062IDGN is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at extreme temperatures. Consult the datasheet and TI's reliability documentation for more information.
Yes, the THS4062IDGN can be used in a non-inverting configuration, but it requires a different set of external components and may affect the device's performance. TI provides application notes and design examples for non-inverting configurations.
To ensure EMI compliance, follow proper PCB design and layout practices, such as using shielding, grounding, and filtering techniques. TI provides guidelines for EMI reduction in the THS4062IDGN datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4062IDGN Overview

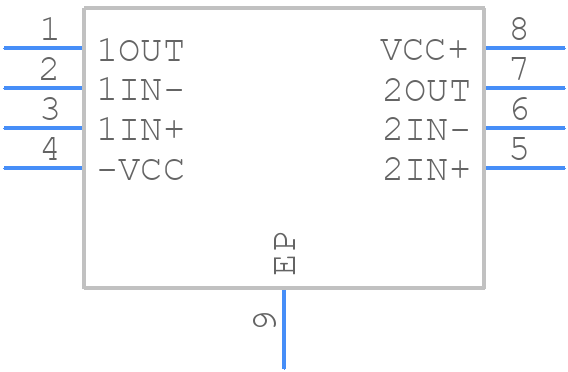

Use the download button to access the THS4062IDGN schematic symbol, PCB footprint, and 3D model.
