THS4082CDGN - Texas Instruments

Description: Voltage Feedback Amplifier 2 Circuit - 8-MSOP-PowerPad

Download THS4082CDGN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

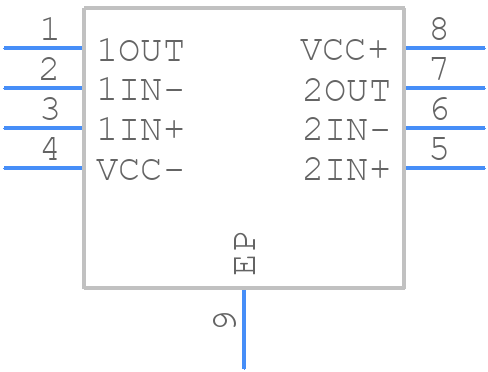

Symbol
THS4082CDGN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS4082CDGN - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN (S-PDSO-G8)_2022
click to zoom
3D Models
THS4082CDGN - Texas Instruments - 3D model - Small Outline Packages - DGN (S-PDSO-G8)_2022
click to zoom

THS4082CDGN Details

  • Manufacturer Part Number:

    THS4082CDGN

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 10V TO 30V SINGLE SUPPLY

  • Bandwidth-Nom:

    175000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

THS4082CDGN Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS4082CDGN evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The input termination depends on the source impedance and the desired frequency response. TI recommends using a 50-ohm termination for most applications, but a 75-ohm termination may be required for certain video applications. Consult the datasheet and application notes for more information.
  • The THS4082CDGN is rated for operation from -40°C to 125°C, but the device's performance may degrade at extreme temperatures. Consult the datasheet for more information on temperature-related specifications.
  • The THS4082CDGN is a commercial-grade device, but TI offers a radiation-hardened version, the RH4082, which is designed for high-reliability and aerospace applications. Consult TI's website for more information on the RH4082.
  • TI provides application notes and troubleshooting guides on their website, which cover common issues and provide guidance on how to identify and resolve them. Additionally, TI's support team can provide assistance with troubleshooting and design optimization.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS4082CDGN Overview

Use the download button to access the THS4082CDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
