THS4082CDGNR - Texas Instruments

Description: 175-MHz Low-Power Voltage-Feedback Amplifier, Dual

Download THS4082CDGNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

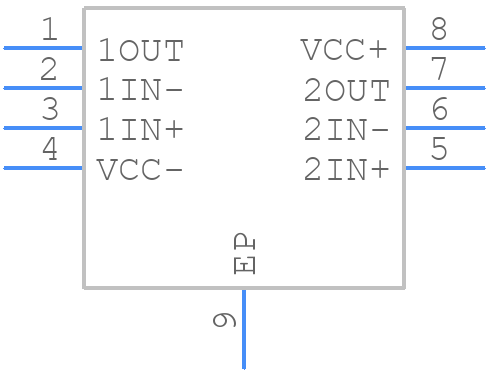

THS4082CDGNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS4082CDGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008D
click to zoom
3D Models
THS4082CDGNR - Texas Instruments - 3D model - Small Outline Packages - DGN0008D
click to zoom

THS4082CDGNR Details

  • Manufacturer Part Number:

    THS4082CDGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 10V TO 30V SINGLE SUPPLY

  • Bandwidth-Nom:

    175000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

THS4082CDGNR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS4082 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The input termination depends on the specific application and signal source. TI recommends using a 50Ω termination for most applications, but a 75Ω termination may be required for certain video applications. Consult the datasheet and application notes for more information.
  • The THS4082CDGNR is rated for operation from -40°C to 125°C, but the device's performance may degrade at extreme temperatures. Consult the datasheet for more information on temperature-related specifications.
  • Yes, the THS4082CDGNR can be used in a non-inverting configuration, but it requires a different gain resistor network and may have different performance characteristics. Consult the datasheet and application notes for more information.
  • TI recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins of the THS4082CDGNR to protect against electrostatic discharge. Consult the datasheet and application notes for more information.
