SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
52 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
15 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Unity Gain BW-Nom:
135000
Voltage Gain-Min:
3548
Wideband:
YES
Width:
3 mm
THS4130CDGNRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
The input termination depends on the specific application and signal source. The datasheet provides some guidance, but it's also important to consider the signal frequency, amplitude, and source impedance. A general rule of thumb is to use a termination that matches the source impedance.
The THS4130 is rated for operation from -40°C to 125°C, but it's important to note that the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance according to the temperature derating curves provided in the datasheet.
The THS4130 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD protection devices such as TVS diodes or ESD arrays.
The datasheet recommends using a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor for power supply decoupling. It's also important to place the decoupling capacitors as close as possible to the device's power pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4130CDGNRG4 Overview

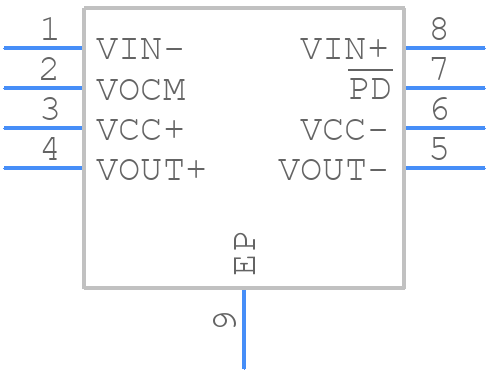

Use the download button to access the THS4130CDGNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS41,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
