A good PCB layout for the THS4281D involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To optimize the THS4281D for low noise performance, use a low-noise power supply, decouple the power pins with high-quality capacitors, and keep the input and output traces away from each other. Additionally, use a low-noise reference voltage and ensure good thermal management.
The THS4281D is specified to operate from -40°C to 125°C, but the device can be operated at temperatures up to 150°C with reduced performance. However, it's recommended to operate the device within the specified temperature range for optimal performance and reliability.
Yes, the THS4281D is suitable for high-reliability and aerospace applications. It is manufactured using a high-reliability process and is available in a hermetic package. However, it's recommended to consult with Texas Instruments' application engineers to ensure the device meets the specific requirements of the application.
To troubleshoot common issues with the THS4281D, start by checking the PCB layout and ensuring that the device is properly decoupled. Verify that the input and output traces are properly terminated and that the power supply is clean and stable. Use an oscilloscope to measure the output waveform and look for signs of oscillation or instability. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4281D Overview

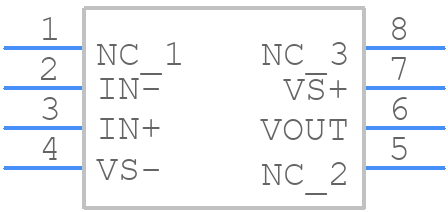

Use the download button to access the THS4281D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS42,
or try a keyword search, such as Operational Amplifiers
