Texas Instruments provides a recommended PCB layout in the THS4281DR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To optimize the THS4281DR for low power consumption, use the lowest possible supply voltage, reduce the output load capacitance, and adjust the output voltage swing to the minimum required for the application. Additionally, consider using the device's power-down mode when not in use.
The THS4281DR is specified to operate from -40°C to 125°C, but it's essential to consider the device's thermal characteristics, such as junction-to-ambient thermal resistance, to ensure reliable operation within the desired temperature range.
Common issues with the THS4281DR can often be attributed to improper PCB layout, inadequate decoupling, or incorrect component selection. To troubleshoot, start by verifying the PCB layout against the recommended layout, checking for adequate decoupling, and ensuring that the output is properly terminated. If issues persist, consult the THS4281DR application notes and Texas Instruments' support resources.
The THS4281DR is a commercial-grade device, but Texas Instruments offers a range of high-reliability and aerospace-grade amplifiers that meet specific industry standards, such as MIL-PRF-38535 or ESCC. For high-reliability or aerospace applications, consider using a device specifically designed and qualified for those markets.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4281DR Overview

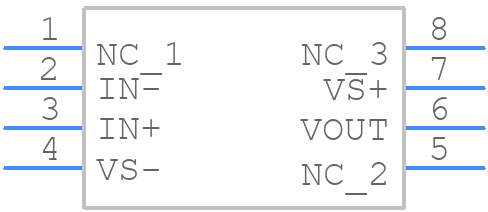

Use the download button to access the THS4281DR schematic symbol, PCB footprint, and 3D model.
