THS4303RGTT - Texas Instruments

Description: Texas Instruments THS4303RGTT, Video Amplifier, 18MHz, 16-Pin QFN

Download THS4303RGTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

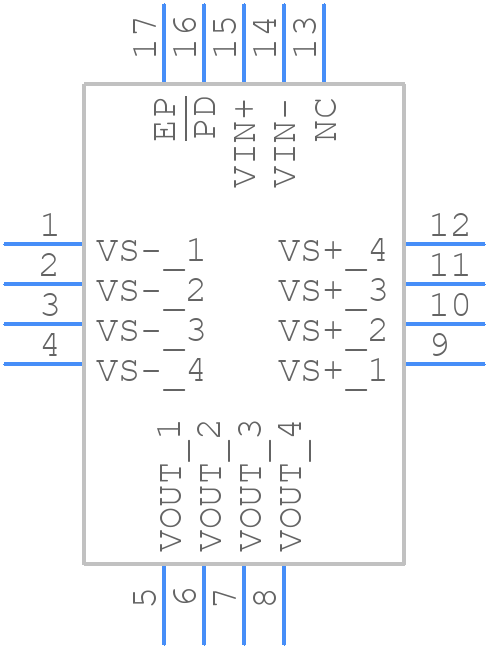

THS4303RGTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS4303RGTT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016A+
click to zoom
3D Models
THS4303RGTT - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016A+
click to zoom

THS4303RGTT Details

  • Manufacturer Part Number:

    THS4303RGTT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    15 µA

  • Bias Current-Max (IIB) @25C:

    1 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    60 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    18 µA

  • Input Offset Voltage-Max:

    4250 µV

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    5500 V/us

  • Supply Current-Max:

    41 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1800000

  • Voltage Gain-Min:

    158.5

  • Wideband:

    YES

  • Width:

    3 mm

THS4303RGTT Frequently Asked Questions (FAQs)

  • A good PCB layout for the THS4303RGTT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) in the output stage. Additionally, the gain and phase margins should be checked to ensure they meet the stability criteria.
  • The maximum power dissipation of the THS4303RGTT is dependent on the ambient temperature and the thermal resistance of the package. The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. The maximum power dissipation can be found in the datasheet, and it's essential to ensure that the device does not exceed this limit to prevent overheating.
  • The optimal output capacitor for the THS4303RGTT depends on the output voltage, output current, and desired ripple voltage. A general guideline is to use a low-ESR capacitor with a value between 10uF to 22uF. The capacitor should be rated for the maximum output voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple.
  • The recommended input capacitor for the THS4303RGTT is a ceramic capacitor with a value between 1uF to 10uF. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple. X7R or X5R dielectric capacitors are recommended due to their low ESR and high reliability.
