SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
2800 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
28 mA
Supply Voltage Limit-Max:
8.25 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
300000
Voltage Gain-Min:
355
Wideband:
YES
Width:
3 mm
THS4503CDGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4503CDGN evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input termination resistors depend on the specific application and signal source. TI provides a termination resistor calculator tool to help select the correct values based on the signal frequency, amplitude, and source impedance.
The THS4503CDGN is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at higher temperatures. Consult the datasheet and application notes for more information.
Yes, the THS4503CDGN can be used in a non-inverting configuration, but it requires a different set of external components and gain-setting resistors. Consult the datasheet and application notes for guidance on non-inverting amplifier configurations.
To minimize EMI, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding or filtering components. TI also provides EMI reduction guidelines in the THS4503CDGN datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4503CDGN Overview

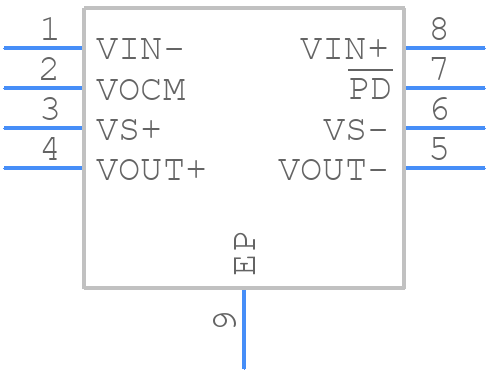

Use the download button to access the THS4503CDGN schematic symbol, PCB footprint, and 3D model.
