Texas Instruments provides a recommended PCB layout in the THS4509RGTRG4 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input termination resistors (RIN) should be chosen based on the source impedance of the signal and the desired input impedance of the amplifier. A general guideline is to choose RIN = 2 * ZS, where ZS is the source impedance. However, the optimal value may vary depending on the specific application and signal characteristics.
The maximum power dissipation of the THS4509RGTRG4 is approximately 1.4W. To ensure it doesn't overheat, the device should be mounted on a PCB with a sufficient thermal pad and heat sink, and the ambient temperature should be kept below 85°C. Additionally, the device's power consumption should be monitored and controlled to prevent excessive heat generation.
Yes, the THS4509RGTRG4 can be used as a single-ended amplifier by tying the negative input (IN-) to ground and driving the positive input (IN+) with a single-ended signal. However, this configuration may compromise the amplifier's common-mode rejection ratio (CMRR) and noise performance.
The THS4509RGTRG4 has a built-in anti-aliasing filter, but additional filtering may be necessary depending on the specific application. External filters, such as RC filters or active filters, can be used to attenuate high-frequency noise and aliasing. The filter design should be based on the specific signal characteristics and requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4509RGTRG4 Overview

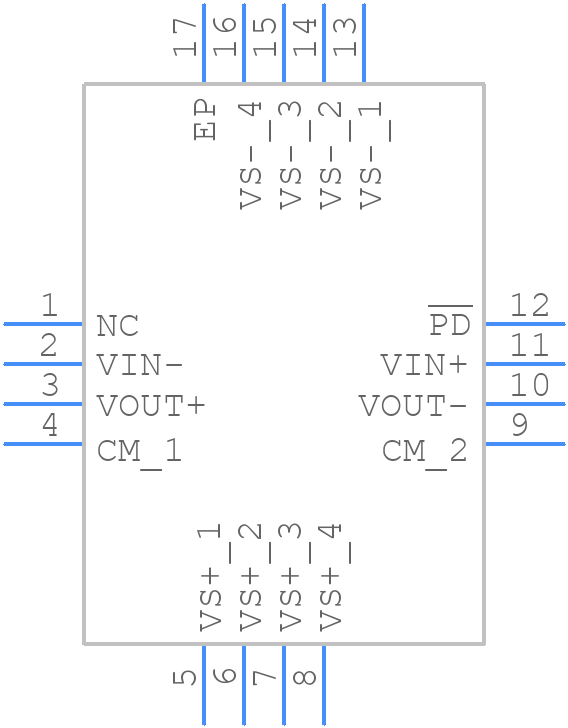

Use the download button to access the THS4509RGTRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS45,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
