THS4567IRUNR - Texas Instruments

Description: Differential Amplifiers 220-MHz CMOS input fully differential amplifier with VICM and VOCM control 10-QFN -40 to 125

Download THS4567IRUNR Model

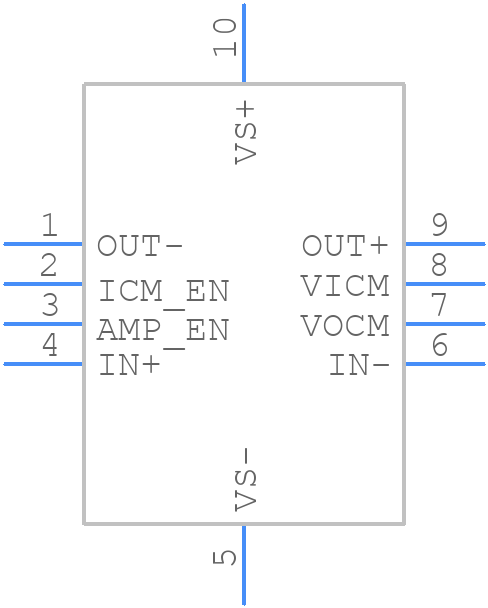

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
THS4567IRUNR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUN0010A
click to zoom
3D Models
THS4567IRUNR - Texas Instruments  - 3D model - Quad Flat No-Lead - RUN0010A
click to zoom

THS4567IRUNR Details

  • Manufacturer Part Number:

    THS4567IRUNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bias Current-Max (IIB) @25C:

    0.00075 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-PQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -2.875 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.08SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    500 V/us

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage Limit-Max:

    2.875 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    220000

  • Voltage Gain-Max:

    10

  • Voltage Gain-Min:

    158489

  • Wideband:

    YES

  • Width:

    2 mm

THS4567IRUNR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and keeping the input and output traces separate. Additionally, use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The gain resistor values depend on the desired gain and bandwidth. Use the THS4567's gain equation (G = 1 + (Rf/Rg)) to calculate the required resistor values. Ensure that the resistors are matched to within 0.1% to maintain good common-mode rejection. Also, consider the parasitic capacitance and inductance of the resistors when selecting values.
  • The maximum input voltage swing for the THS4567 is ±1.4V, which is limited by the internal clamping diodes. Exceeding this limit can cause damage to the device. Ensure that the input signal is properly terminated and filtered to prevent overvoltage conditions.
  • The THS4567 has internal ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
  • Use a combination of ceramic and electrolytic capacitors to decouple the power supply. A 10uF ceramic capacitor and a 1uF electrolytic capacitor in parallel, placed close to the device, can provide effective decoupling. Ensure that the capacitors are rated for the operating voltage and have low ESR to minimize noise and ripple.
