A good PCB layout for the THS4631DR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
The input capacitor should be a low-ESR ceramic capacitor with a value between 10nF to 100nF. The output capacitor should be a low-ESR ceramic capacitor with a value between 100nF to 1uF. The capacitor values and types may need to be adjusted based on the specific application and operating frequency.
The maximum power dissipation of the THS4631DR is 1.4W. However, the actual power dissipation will depend on the operating conditions, such as the input voltage, output current, and ambient temperature. It is recommended to calculate the power dissipation based on the specific application and ensure that the device is properly heat-sinked.
To ensure stability, it is recommended to follow the recommended PCB layout, use the recommended input and output capacitors, and ensure that the device is properly decoupled. Additionally, the device should be operated within the recommended operating conditions, and the output should be properly terminated.
The THS4631DR is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's power dissipation and ensure proper heat-sinking to ensure reliable operation in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4631DR Overview

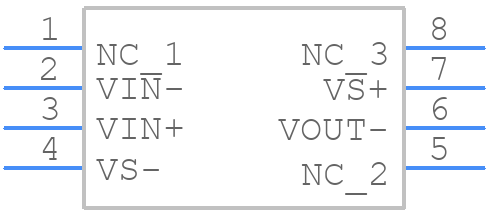

Use the download button to access the THS4631DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS46,
or try a keyword search, such as Operational Amplifiers
