THS5661AIPWR - Texas Instruments

Description: 12-Bit, 125-MSPS Digital-to-Analog Converter (DAC)

Download THS5661AIPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

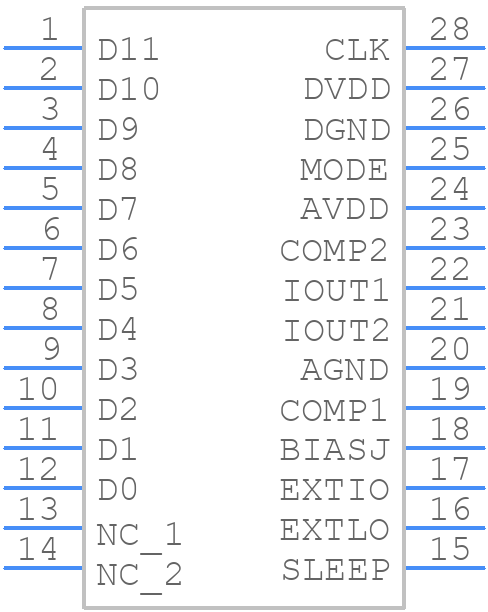

THS5661AIPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS5661AIPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
THS5661AIPWR - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

THS5661AIPWR Details

  • Manufacturer Part Number:

    THS5661AIPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.035 µs

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

THS5661AIPWR Frequently Asked Questions (FAQs)

  • A good PCB layout for THS5661AIPWR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. The recommended values are 10uF for input capacitors and 22uF for output capacitors. X5R or X7R ceramic capacitors are good options.
  • The maximum power dissipation of THS5661AIPWR is 2.5W. However, it's recommended to keep the junction temperature below 125°C to ensure reliability. Use a thermal pad or a heat sink to improve heat dissipation.
  • Yes, THS5661AIPWR is rated for operation from -40°C to 125°C. However, the device's performance may degrade at high temperatures. Ensure proper heat dissipation and consider derating the device's power dissipation at high temperatures.
  • Common issues with THS5661AIPWR can be caused by poor PCB layout, inadequate decoupling, or incorrect component selection. Check the PCB layout, decoupling capacitors, and component values. Use an oscilloscope to measure the output voltage and current. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS5661AIPWR Overview

Use the download button to access the THS5661AIPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
