THS6002IDWP - Texas Instruments

Description: Dual Differential Line Driver/Receiver

Download THS6002IDWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

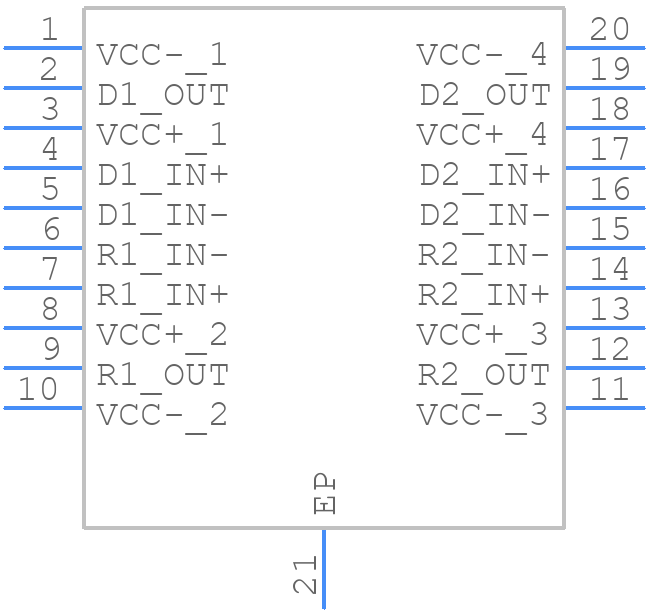

THS6002IDWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS6002IDWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWP (R-PDSO-G20)
click to zoom
3D Models
THS6002IDWP - Texas Instruments - 3D model - Small Outline Packages - DWP (R-PDSO-G20)
click to zoom

THS6002IDWP Details

  • Manufacturer Part Number:

    THS6002IDWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 9V TO 32V SINGLE SUPPLY

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.825 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.8 V

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    33 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    16 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.52 mm

THS6002IDWP Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS6002IDWP evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines and calculators in the THS6002IDWP datasheet and application notes to help engineers select the correct termination resistors for their design.
  • The THS6002IDWP is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. Engineers should consult the datasheet and application notes for more information on thermal management and derating.
  • TI provides guidelines and recommendations for EMC and EMI compliance in the THS6002IDWP datasheet and application notes, including advice on PCB layout, shielding, and filtering to minimize electromagnetic radiation and susceptibility.
  • TI recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, as well as filtering techniques such as ferrite beads and LC filters to minimize noise and ensure stable operation. The THS6002IDWP datasheet and application notes provide more detailed guidance on power supply decoupling and filtering.
