Texas Instruments provides a recommended PCB layout in the THS6042CDDA evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
Optimization of THS6042CDDA for a specific application involves selecting the right gain setting, output filter, and input termination. TI provides application notes and design tools, such as the THS6042CDDA Evaluation Module and the TI FilterPro software, to help with this process.
The maximum input signal amplitude that THS6042CDDA can handle is dependent on the gain setting and the supply voltage. According to the datasheet, the maximum input signal amplitude is 2.5Vpp for a gain of 1V/V and 5V supply voltage. However, it's recommended to consult with TI's application engineers for specific guidance on input signal amplitude limitations.
To ensure EMI compliance with THS6042CDDA, follow proper PCB layout and design guidelines, use shielding and filtering techniques, and consider using EMI-absorbing materials. TI also provides EMI-related application notes and design resources to help with compliance.
The thermal derating of THS6042CDDA is dependent on the ambient temperature and the power dissipation of the device. According to the datasheet, the device can operate up to 125°C junction temperature, and the power dissipation should be derated by 1.67mW/°C above 25°C ambient temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS6042CDDA Overview

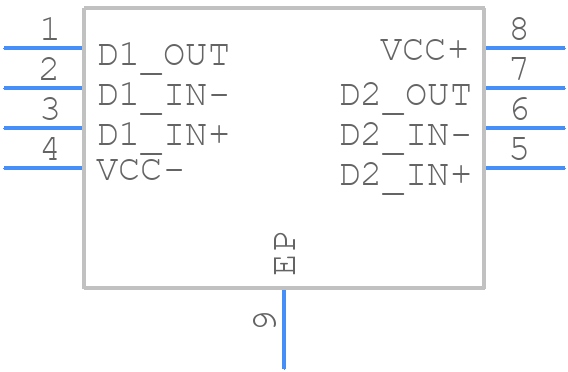

Use the download button to access the THS6042CDDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS60,
or try a keyword search, such as Line Driver or Receivers
