SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
15 V
Supply Voltage-Min:
5 V
Supply Voltage-Nom:
12 V
Supply Voltage1-Max:
15 V
Supply Voltage1-Min:
5 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
THS6043IPWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS6043IPWP evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS6043IPWP datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS6043IPWP is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and power consumption at higher temperatures. Consult the datasheet and application notes for more information on temperature-related considerations.
Yes, the THS6043IPWP can be used in a non-inverting amplifier configuration. However, it's crucial to ensure that the input common-mode voltage range is within the specified limits, and the output voltage swing is not exceeded. Consult the datasheet and application notes for more information on non-inverting amplifier configurations.
To minimize EMI and EMC issues, follow proper PCB layout and design practices, such as using shielding, grounding, and decoupling capacitors. Additionally, consider using EMI filters or common-mode chokes to reduce radiation and susceptibility. TI provides guidelines and resources for EMI and EMC design considerations in their application notes and documentation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS6043IPWP Overview

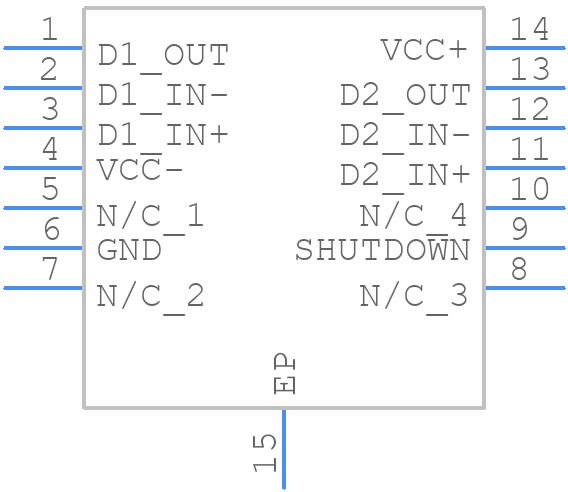

Use the download button to access the THS6043IPWP schematic symbol, PCB footprint, and 3D model.
